Specialized Heating Cycle Diagnostics

Kuchina Auto-Clean Chimney Repair & Service in India

Is your auto-clean kitchen chimney failing to heat up, beeping error tones, or dripping greasy oil down onto your cooking counter? We provide specialized doorstep diagnosis, heating coil replacement, and maintenance for Kuchina auto-clean chimneys across India.

Whether you are searching for Kuchina auto-clean chimney repair service, Kuchina auto-clean chimney service near me, or need to know Kuchina auto-clean heating element replacement cost, our independent technician network is equipped to test thermal coils, repair control boards, and descale hardened oil passages. Check common faults, spare parts costs, and troubleshooting guidance below.

Inspection Notice: Standard doorstep inspection charge is ₹299–₹399. Final cost depends on thermal heating element continuity, PCB relay condition, and blower cleaning.

Auto-Clean Diagnostics

Thermal Service

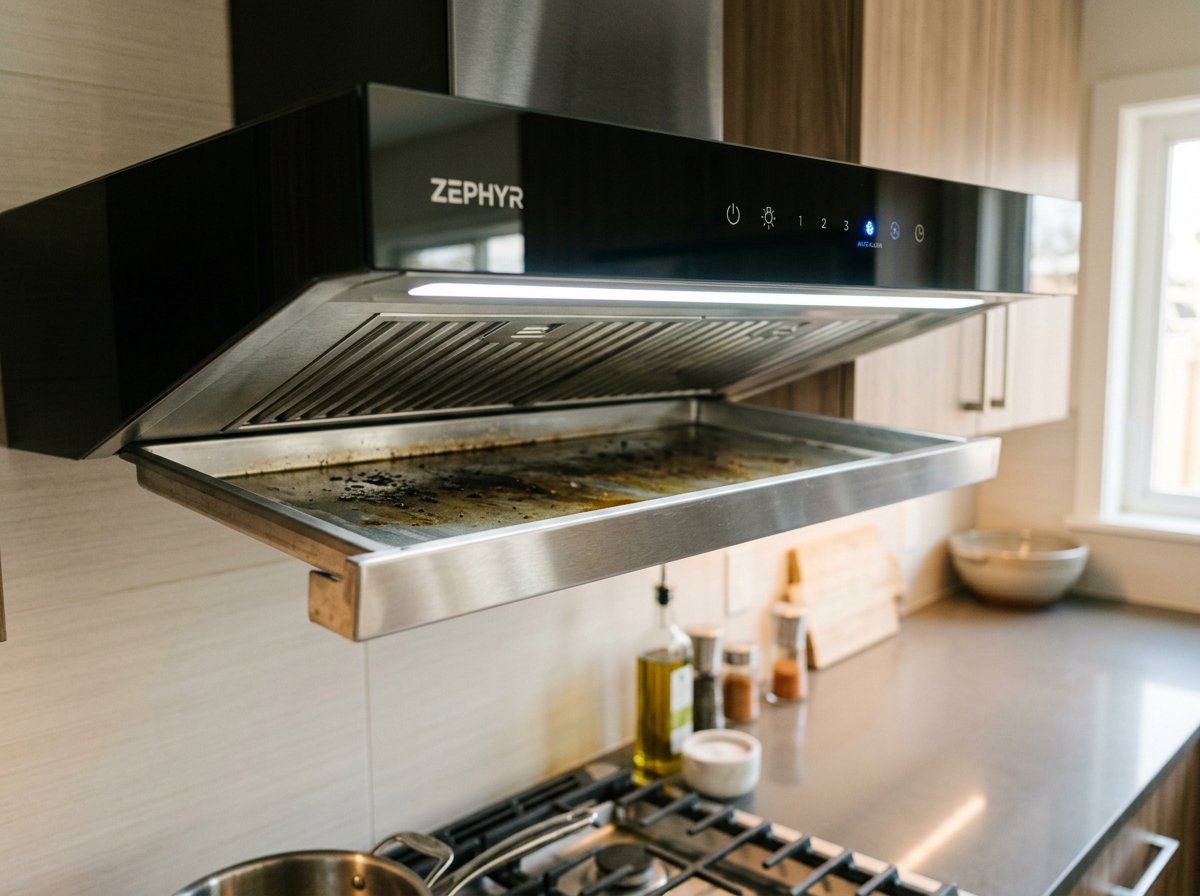

Kitchen auto-clean chimney showing lower oil collector tray and LED illumination
  • Thermal heating coil continuity & resistance testing
  • Oil drainage chute descaling and tray realignment
  • Control board relay and thermal safety cut-off diagnostics
Technical Breakdown

How Kuchina Thermal Auto-Clean Technology Works

Understanding the engineering behind heating strips, timed cycles, and oil condensation channels.

1. Thermal Heating Stage

When the auto-clean button is activated, a specialized resistive heating element wrapped around the internal blower chamber warms up to 70°C–80°C for 10–15 minutes.

2. Oil Liquefaction

Hardened cooking oils, ghee, and grease residue sticking to the fan impeller blades and internal walls liquefy under controlled heat, sliding downward through gravity channels.

3. Oil Tray Collection

The melted grease flows into a detachable stainless steel or transparent plastic collection tray at the bottom of the hood, which can simply be emptied and rinsed.

Pricing Transparency

Auto-Clean Chimney Spare Parts & Repair Costs

Indicative pricing for heating strips, oil collection trays, and electronic PCB control components across India.

Part Name Purpose Common Fault Indicative Price (₹ INR) Cost Factors
Doorstep Visiting & Diagnostic Fee Covers physical disassembly, multimeter testing, and quotation Complete check of auto-clean circuitry and motor ₹299 – ₹399 Adjusted against final bill if repair approved
Thermal Auto-Clean Heating Element Heats the blower casing to melt accumulated grease Open-circuit burnout, zero heating during cycle ₹850 – ₹1,450 Blower chamber diameter, element wattage rating
Detachable Oil Collector Tray Receives liquefied oil runoff at the bottom of the hood Cracked tray, warped edges, broken retaining clips ₹350 – ₹650 Stainless steel (SS 304) vs transparent polycarbonate
Auto-Clean Control Relay / Motherboard Controls auto-clean timer cycle and relay switching Continuous beeping error, failure to activate heater ₹1,200 – ₹2,200 Touch sensor vs gesture wave control system
High-Temperature Thermal Cutoff Sensor Shuts off power if blower temperature exceeds safety limit False tripping, shutting unit off midway through cycle ₹300 – ₹550 Temperature threshold rating (e.g., 95°C / 105°C)
Deep Chemical Degreasing & Descaling Restores baked oil channels when auto-clean has been neglected Severe carbon buildup preventing oil flow into tray ₹799 – ₹1,299 60cm vs 90cm hood width, grease severity

Pricing Guidance:

All pricing ranges are indicative market rates for compatible replacement parts and standard service labor in India. Prices exclude applicable GST. Official manufacturer prices are not fixed. Final estimate is confirmed after on-site technician inspection.

Troubleshooting Guide

Common Problems with Kuchina Auto-Clean Chimneys

Learn why auto-clean functions fail, what technicians inspect, and how faults are permanently resolved.

01

Auto-Clean Heating Cycle Does Not Warm Up

What You Notice: You press the auto-clean button, the LED timer counts down or beeps, but the metal hood stays completely cold and no grease melts.

Possible Reasons: Burned out heating element coil, broken wire connector, or burned PCB auto-clean relay contacts.

What Technician Checks: Tests heating element resistance using a digital multimeter; checks 230V AC output from motherboard relay during auto-clean mode.

Repair or Replacement: Replacement of thermal heating strip or relay replacement on motherboard.

What To Do Next: Do not repeatedly run the auto-clean button if cold, as this can overheat control board traces.

02

Oil Dripping from Sides Instead of Tray

What You Notice: Melted grease leaks from hood corners, joints, or screws onto your cooktop rather than collecting into the oil cup.

Possible Reasons: Drainage chute blocked with solidified grease, misaligned collector tray, or chimney mounted without proper tilt angle.

What Technician Checks: Disassembles lower collector assembly to inspect drainage slope and clears carbonized sludge.

Repair or Replacement: Chemical cleaning and unclogging of drainage passage; realigning mounting brackets if tilt is uneven.

What To Do Next: Wipe dripping oil with a paper towel and remove collector cup to inspect if the drain hole is blocked.

03

Chimney Beeps Continuously and Stops Cycle

What You Notice: A few minutes into auto-clean, the chimney sounds rapid alarm beeps and shuts off automatically.

Possible Reasons: Thermal safety sensor tripped due to high heat, low AC mains voltage, or motherboard microprocessor glitch.

What Technician Checks: Measures operating temperature of casing with infrared thermometer; checks thermal cutoff sensor resistance.

Repair or Replacement: Replacing thermal cutoff thermostat switch or recalibrating motherboard temperature sensors.

What To Do Next: Allow unit to cool down for 30 minutes before testing normal fan operation.

04

Heavy Fan Vibration After Auto-Clean Cycle

What You Notice: The fan worked smoothly before, but after running auto-clean, the chimney rattles and vibrates loudly.

Possible Reasons: Partial oil melting: grease melted off one side of the impeller wheel while remaining stuck to the other, unbalancing the fan.

What Technician Checks: Inspects impeller fan wheel by hand; checks for uneven grease sludge deposits on opposing blades.

Repair or Replacement: Complete removal of impeller wheel and immersion cleaning to restore balanced rotational mass.

What To Do Next: Avoid running the fan on top speed with severe vibration to protect motor bearings.

Customer Queries

Frequently Asked Questions: Auto-Clean Chimney Service

Helpful answers regarding heating coil lifespan, cleaning frequency, and service costs.

How does the thermal auto-clean feature work on Kuchina chimneys?

Thermal auto-clean uses an electric heating element wrapped around the internal blower chamber. When activated, it heats the housing to roughly 70°C–80°C for 10–15 minutes, liquefying sticky oil and ghee so it drains into an external collection cup.

How often should I run the auto-clean cycle in an Indian kitchen?

For moderate cooking with daily tempering (tadka), running auto-clean once every 10–15 days is recommended. For heavy non-vegetarian cooking or frequent deep frying, running it once weekly prevents grease from hardening onto the motor casing.

Can the auto-clean heating coil burn out and be replaced?

Yes. Like any resistive heating element (similar to an electric geyser coil), continuous thermal cycling over 3–5 years can cause the coil to open-circuit. Our technicians carry compatible replacement heating elements (₹850–₹1,450) that can be installed on-site.

Why is there no oil in my collector cup after running auto-clean?

If the auto-clean cycle finishes but the cup remains empty, either the heating element failed to warm up (check if casing felt warm), or the narrow oil drainage slot at the base of the blower is clogged with hardened, dry carbon residue.

Do I still need professional cleaning if I use auto-clean regularly?

Yes. While auto-clean removes about 70–80% of liquefied oil, fine grease film and dust still accumulate over time in the exhaust duct pipe and motor housing. A professional chemical deep clean is advisable once every 12 months.

What causes the chimney to beep and flash during auto-clean?

Flashing indicators and error beeps typically indicate that the thermal safety cutoff switch detected high casing temperature or a relay on the main PCB motherboard failed to engage properly.

What is the visiting charge for auto-clean chimney repair?

Our standard technician visiting fee is ₹299–₹399. The technician inspects the heating element, wiring harness, blower, and motherboard, and provides an upfront estimate before performing any repair work.

Are replacement oil collector cups easily available?

Yes, we supply compatible stainless steel and clear plastic oil collection trays designed to fit standard Kuchina chimney mounting brackets (₹350–₹650).
