High Airflow & Motion Sensor Care

Kuchina Filterless Chimney Repair & Service in India

Is your filterless kitchen chimney suffering from reduced suction during intense cooking, producing a loud humming roar, or failing to recognize hand wave gesture controls? We provide independent doorstep diagnosis, deep impeller balancing, and circuit repairs for filterless chimneys across India.

Whether you are searching for Kuchina filterless chimney repair service, Kuchina filterless chimney low suction repair, or need assistance with Kuchina gesture control chimney repair in India, our independent technician network is equipped to disassemble sealed blower housings, rebalance coated fan wheels, and restore optical sensor responsiveness. Explore diagnostic steps, spare parts costs, and troubleshooting guidance below.

Call for Filterless Repair WhatsApp Service Desk View Parts & Costs
Inspection Notice: Standard doorstep technician visiting charge is ₹299–₹399. Final cost depends on motor bearing testing, impeller cleaning, and gesture sensor diagnostics.

Filterless Diagnostics

High Airflow Care

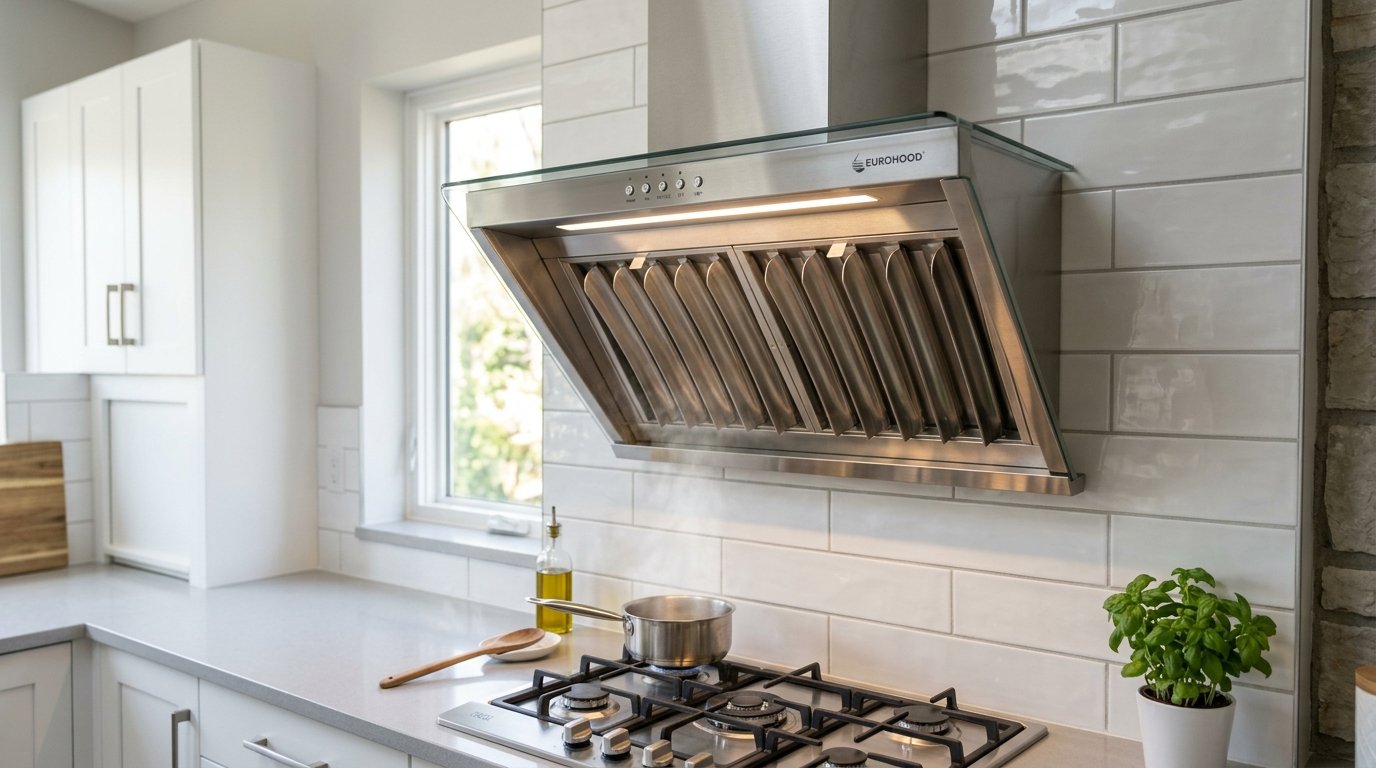

Filterless kitchen chimney hood with inclined baffle intake above cooking counter
  • Centrifugal impeller blade chemical degreasing & dynamic balancing
  • Motion wave gesture sensor recalibration and optical cleaning
  • Sealed 100% copper motor testing and capacitor replacement
Engineering Overview

How Filterless Chimneys Work & Why Maintenance Matters

Understanding high-velocity air intakes, centrifugal grease separation, and sealed motor housings.

1. Unobstructed Suction Intake

Instead of passing through metal mesh or baffle grids, smoke and steam are pulled directly into the motor chamber by high suction velocity (1200–1500 m³/hr).

2. Centrifugal Oil Separation

The high-speed impeller flings heavier oil droplets against the casing walls by centrifugal force, channeling the liquefied grease into an integrated perimeter drainage groove.

3. Sealed Motor Protection

The electric motor is housed in a sealed metal capsule to shield copper windings from oily vapors. However, the impeller itself still accumulates baked grease over time.

Pricing Transparency

Filterless Chimney Spare Parts & Repair Costs

Indicative costs for centrifugal fans, copper motors, motion sensors, and ducting across India.

Part Name Purpose Common Fault Indicative Price (₹ INR) Cost Factors
Doorstep Diagnostic Charge Covers physical disassembly, airflow testing, and quotation Complete check of suction velocity, motor, and gesture sensor ₹299 – ₹399 Adjusted against final bill if repair approved
Centrifugal Blower Impeller Fan Generates high suction airflow inside the sealed chamber Bent vanes, wobbling, baked grease imbalance causing roar ₹750 – ₹1,350 Metal vs high-grade composite, axle diameter
Sealed Copper Motor (180W–230W) Drives high-RPM impeller fan with thermal protection Winding burnout, bearing seizure, loud grinding vibration ₹1,800 – ₹3,400 Wattage, thermal overload class, mounting brackets
Motion Gesture Optical Sensor PCB Allows touch-free hand wave speed and power control Unresponsive to waving, random phantom switching ₹950 – ₹1,650 Optical sensor version, connector harness type
Motor Run Capacitor (4µF–6µF) Supplies starting torque to high-speed copper motor Motor hums loudly but impeller does not rotate ₹250 – ₹450 Microfarad rating, voltage tolerance
Heavy-Duty Flexible Aluminum Duct (6-inch) Transports high-volume exhaust fumes outside the home Torn foil, crushed pipe in false ceiling, oil seepage ₹450 – ₹850 Length (up to 10 feet), gauge thickness, clamp kit
Complete Impeller Deep Degreasing Service Restores high suction by chemical immersion of fan blades Thick hardened oil crust narrowing air passage ₹899 – ₹1,399 Disassembly complexity, grease encrustation level

Pricing Guidance:

All stated pricing ranges are indicative market estimates for compatible components and standard service labor in India. Prices exclude applicable GST. Official manufacturer prices are not fixed. Final estimate is confirmed after on-site technician inspection.

Troubleshooting Guide

Common Problems with Kuchina Filterless Chimneys

Learn what symptoms indicate, what technicians inspect, and how airflow faults are permanently fixed.

01

Gradual Suction Loss Over Months

What You Notice: The chimney used to clear all frying smoke instantly, but now smoke drifts across the kitchen even at maximum speed 3.

Possible Reasons: Because there are no filters, sticky oil directly coats the curved impeller fan vanes, reducing aerodynamic lift and narrowing exhaust pipe diameter.

What Technician Checks: Measures intake air speed using a digital anemometer; inspects internal blower chamber for grease buildup.

Repair or Replacement: Full mechanical removal of the impeller fan and chemical degreasing; clearing the exterior exhaust duct pipe.

What To Do Next: Avoid spraying liquid chemical cleaners directly into the open suction intake while the motor is spinning.

02

Loud Humming or Roaring Vibration

What You Notice: When switched to speed 2 or 3, the chimney emits a loud roaring noise and vibrates the entire wall cabinet.

Possible Reasons: Uneven oil deposits on the high-speed impeller fan wheel cause dynamic imbalance, putting heavy radial stress on motor ball bearings.

What Technician Checks: Spins the impeller by hand to check for wobble; inspects motor bearings for dryness or axial play.

Repair or Replacement: Cleaning and rebalancing the fan wheel, lubricating or replacing motor bearings.

What To Do Next: Reduce usage to lowest speed until inspected to prevent bearing seizure.

03

Gesture Motion Wave Control Not Working

What You Notice: Waving your hand from left to right does not turn on the chimney or change fan speeds.

Possible Reasons: Oily cooking residue or condensation coating the optical sensor glass window, or defective infrared receiver board.

What Technician Checks: Inspects sensor lens clarity, checks 5V DC reference voltage to gesture PCB, and tests optical transmitter.

Repair or Replacement: Cleaning sensor window with isopropyl alcohol or replacing gesture sensor module.

What To Do Next: Clean front glass with a dry microfiber cloth and ensure waving motion is between 2 to 4 inches from the sensor.

04

Oil Dripping from Duct Pipe Joints

What You Notice: Brown sticky oil drops from the ceiling junction where the aluminum exhaust pipe passes through the wall.

Possible Reasons: High-velocity oil mist condensing in the exhaust duct pipe and leaking out through unsealed joints or backwards slope.

What Technician Checks: Inspects duct pipe pitch, checks for tears in aluminum foil, and checks external backdraft damper.

Repair or Replacement: Realigning duct with outward downward slope and resealing joints with heavy aluminum foil tape.

What To Do Next: Place a paper towel underneath the joint and avoid running the chimney on full load until resealed.

Customer Queries

Frequently Asked Questions: Filterless Chimney Service

Helpful answers regarding maintenance needs, gesture sensor repair, and motor durability.

Do filterless chimneys really never need cleaning?

This is a common misconception. While you do not have to wash mesh or baffle filters every 15 days, the internal high-speed impeller fan and motor casing still catch sticky cooking oils and require professional deep cleaning every 8 to 12 months for Indian cooking.

Why is my filterless chimney losing suction after 1 year?

Over months of daily cooking, oil mist binds with dust on the blower blades, reducing their aerodynamic pulling power. A professional chemical degreasing service restores original suction capacity.

Can gesture motion control sensors be repaired if they stop working?

Yes. In many cases, cleaning greasy cooking film from behind the sensor glass restores functionality. If the optical chip is damaged, our technicians can replace the small gesture sensor board (₹950–₹1,650).

Why does my filterless chimney make a loud whistling sound?

Because filterless chimneys push air at very high velocity, any bend, dent, or constriction in the flexible exhaust duct pipe creates air turbulence that sounds like a whistle. Realigning or straightening the duct pipe eliminates the noise.

How much does motor replacement cost for a filterless model?

Indicative costs for compatible sealed copper-wound motors range from ₹1,800 to ₹3,400 depending on wattage (180W to 230W) and mounting brackets, plus visiting and installation charges.

What is the technician visiting fee for filterless chimney inspection?

Our standard doorstep technician visiting charge is ₹299–₹399. The technician inspects the impeller, motor windings, gesture sensor, and ducting, providing a clear written estimate before any repair work begins.

Is a filterless chimney better than a baffle filter chimney for Indian cooking?

Filterless chimneys offer higher suction velocity and require less frequent weekly maintenance. However, baffle chimneys protect the internal fan better from heavy oil droplets. Both work well if serviced periodically.
