Sub-Counter Manifold Diagnostics

Kuchina Built-in Hob Service Center in India

Is your countertop built-in gas hob clicking continuously without stopping, refusing to spark, or producing weak yellow flames? We provide specialized doorstep diagnosis, sub-counter manifold servicing, and ignition repairs for Kuchina built-in hobs across India.

Whether you are searching for a Kuchina built-in hob service center in India, need urgent Kuchina built-in hob repair service, or want to fix Kuchina built-in hob ignition clicking, our independent technician network safely inspects multi-point pulse generators, microswitch wiring looms, and gas valves without damaging your granite or quartz countertop. Check common faults, spare parts costs, and safety guidance below.

Call for Built-in Hob Repair WhatsApp Service Desk View Parts & Costs
Inspection Notice: Standard doorstep inspection charge is ₹299–₹399. Final cost depends on sub-counter access, pulse unit replacement, and microswitch harness repair.

Built-in Hob Highlights

Countertop Care

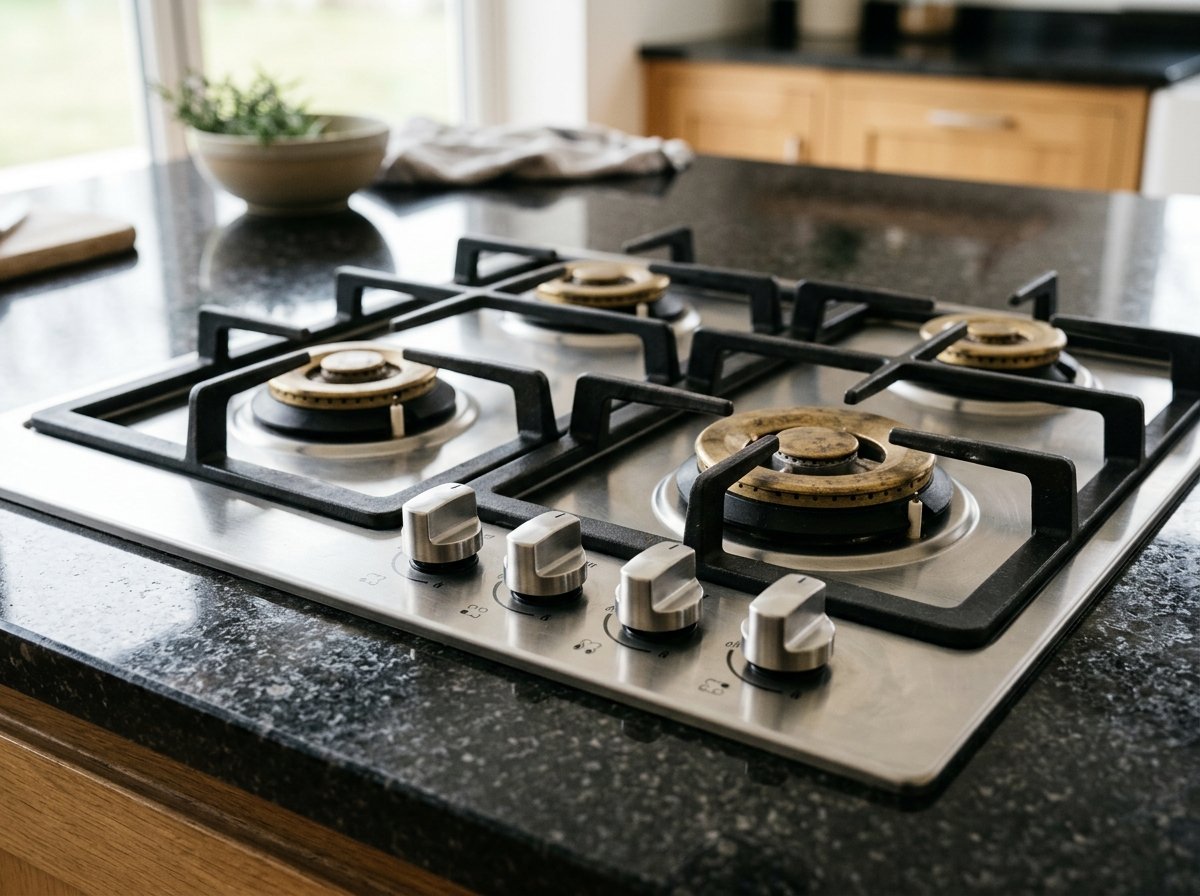

Built-in 4-burner gas hob flush-mounted into kitchen countertop
  • Sub-counter gas manifold leak testing and joint resealing
  • Continuous pulse generator and under-knob microswitch repairs
  • Flame Failure Device (FFD) thermocouple safety diagnostics
Technical Breakdown

How Built-in Hobs Work & Why Sub-Counter Care Matters

Understanding internal multi-point ignition, sub-counter gas manifolds, and flame safety cutoffs.

1. Push-Turn Ignition Logic

Pushing down the knob engages a microswitch that triggers high-voltage pulses across all burner electrodes simultaneously, while turning rotates the valve spindle to supply gas.

2. Sub-Counter Manifold

The gas distribution manifold and electrical spark generator reside enclosed under the countertop. Liquid spills entering through unsealed knob holes pool around wiring harnesses.

3. Flame Failure Device (FFD)

Premium built-in hobs feature thermocouple safety probes that cut off gas within 30 seconds if a boiling liquid boils over and extinguishes the flame, preventing gas buildup.

Pricing Transparency

Built-in Hob Spare Parts & Repair Costs

Indicative pricing for pulse generators, microswitch wiring, gas valve spindles, and electrodes across India.

Part Name Purpose Common Fault Indicative Price (₹ INR) Cost Factors
Doorstep Diagnostic Charge Covers physical disassembly, gas manifold pressure check, and quote Comprehensive check of sub-counter ignition & leak test ₹299 – ₹399 Adjusted against final repair if work approved
Multi-Point Pulse Generator Box Generates continuous spark pulses across all burner electrodes Dead ignition, weak spark, continuous clicking failure ₹450 – ₹850 3, 4, or 5-pin output, 230V AC vs battery
Under-Knob Microswitch Harness Switches on pulse generator when knob is pushed down Moisture ingress from boiling milk causing non-stop clicking ₹350 – ₹650 Number of switches (3-burner vs 4-burner kit)
Internal Gas Valve Spindle Regulates gas volume from high flame to low simmer Jammed brass spindle, gas smell escaping along shaft ₹450 – ₹850 LPG vs PNG bore calibration, valve brand
Ceramic Spark Electrode Pin Delivers high-voltage spark to the brass burner ring Cracked porcelain causing spark to short to chassis ₹180 – ₹320 Electrode height, clip mounting bracket
Flame Failure Thermocouple Probe Detects flame heat to keep safety gas valve open Flame goes out immediately when knob is released ₹350 – ₹650 Probe lead length and connector thread
High-Heat Silicone Perimeter Gasket Seals hob frame against the kitchen countertop cutout Liquid and food debris seeping into lower cabinets ₹200 – ₹350 Length of sealing strip (60cm vs 90cm perimeter)

Pricing Guidance:

All stated pricing ranges are indicative market estimates for compatible components and standard service labor in India. Prices exclude applicable GST. Official manufacturer prices are not fixed. Final estimate is confirmed after on-site technician inspection.

Troubleshooting Guide

Common Problems with Kuchina Built-in Hobs

Learn why built-in hobs click non-stop, why flames extinguish, and how technicians fix sub-counter faults.

01

Ignition Clicking Continuously Without Stopping

What You Notice: The hob clicks rapidly without stopping even after letting go of the knob, draining the battery or disturbing the kitchen.

Possible Reasons: Liquid overflow (dal, milk, water) has seeped down the knob shaft into the microswitch contact below the glass, creating a continuous short circuit.

What Technician Checks: Tests each knob microswitch with a multimeter to isolate the wet or shorted switch.

Repair or Replacement: Drying switch contacts with heat-gun or replacing the microswitch harness.

What To Do Next: Remove the 1.5V battery or unplug the hob power cord from the lower cabinet plug to stop clicking while waiting for service.

02

Burner Won't Stay Lit After Releasing Knob

What You Notice: The burner ignites while holding the knob pressed, but goes out the instant you release your hand.

Possible Reasons: Dirty or defective Flame Failure Device (FFD) thermocouple pin, weak magnetic coil in the valve, or holding the knob for too short a time.

What Technician Checks: Measures millivolt output from thermocouple using a digital multimeter; checks thermocouple alignment against the flame.

Repair or Replacement: Cleaning thermocouple tip with fine emery cloth, aligning probe, or replacing defective thermocouple.

What To Do Next: Hold the knob down firmly for 5–8 seconds before releasing to ensure the sensor reaches operating temperature.

03

Stiff, Jammed, or Frozen Knobs

What You Notice: Knob cannot be pressed down or rotated; feels completely frozen or jammed.

Possible Reasons: Cooking grease, oil mist, and dust have entered the brass valve spindle through the sub-counter opening, solidifying over time.

What Technician Checks: Disassembles valve spindle mechanism and checks for brass galling or grit accumulation.

Repair or Replacement: Cleaning valve core and relubricating with specialized high-temperature gas valve grease.

What To Do Next: Do not use pliers or excessive force on the knob, which can snap the brass gas valve shaft.

04

Gas Smell Inside Lower Kitchen Cabinet

What You Notice: When opening the kitchen drawer or cabinet underneath the hob, you notice a distinct pungent odor of gas.

Possible Reasons: Loose hose jubilee clamp at the hob manifold inlet, cracked gas hose, or degraded valve spindle gasket.

What Technician Checks: Performs bubble leak test and uses electronic gas detector on all sub-counter manifold joints.

Repair or Replacement: Tightening clamp fittings, replacing deteriorated rubber hose, or replacing leaking valve assembly.

What To Do Next: Immediately shut off the gas cylinder regulator or PNG isolation valve. Open all windows. Do not use electrical switches!

Customer Queries

Frequently Asked Questions: Built-in Hob Service

Helpful answers regarding countertop removal, continuous clicking, and gas safety.

Does servicing a built-in hob require damaging the granite countertop?

No. Built-in hobs rest in a countertop cutout secured by spring retaining clips or gravity with silicone perimeter seals. Technicians access internal components through lower cabinets or carefully unclip the hob from above without chipping countertop edges.

Why does my built-in hob keep clicking after a milk spill?

Boiling milk seeps down through the small clearance gap around the knob shaft, bridging the microswitch contacts below. Disconnecting power or removing the battery stops the clicking until a technician dries or replaces the switch.

What is the difference between a built-in hob and a standard gas stove?

A built-in hob is recessed flush into the kitchen countertop with internal manifolds and multi-point pulse ignition, while a standard gas stove rests on rubber feet on top of the counter with simpler mechanical or rotary piezo ignition.

Why does the burner flame extinguish the moment I let go of the knob?

This is caused by the Flame Failure Device (FFD) thermocouple safety mechanism. If the probe is covered in carbon or defective, it fails to sense flame heat and shuts the gas valve off automatically as a safety precaution.

Can a built-in hob be converted from LPG cylinder to PNG pipeline gas?

Yes. Piped natural gas requires larger injector nozzles because PNG operates at lower delivery pressure than LPG. Technicians replace all burner injector nozzles and adjust the air venturi.

How much does the technician visiting charge cost for built-in hobs?

Our standard technician visiting fee is ₹299–₹399. The technician inspects the sub-counter manifold, ignition box, and valves, giving you a clear written estimate before starting work.

How can I prevent liquid spills from getting under my built-in hob?

Ensure that the heat-resistant perimeter silicone gasket around the hob frame is intact. If the seal has dried or lifted, our technician can reseal the border with specialized kitchen-grade silicone sealant.
